Solved Klicky probe variables

[MrMitnick]

Printer Model

Voron 2.4.r2 Rev.C LDO kit

Extruder Type

Clockwork 2

Cooling Type

Stealthburner

Hi guys,

I was wondering if someone would shed some light on setting up the variables for the Klicky probe dock. The part in the manual regarding this is somehow rocketscience to me.
I have the dock on the left side of the printer. I can manually pickup and dock the probe by jogging the toolhead. I have found that the position X:0 and Y:345 is where this interaction takes place. However if i use these values the docking process fails. The toolhead wants to go out of bounds on X ( the macro does a -30 somewhere) .

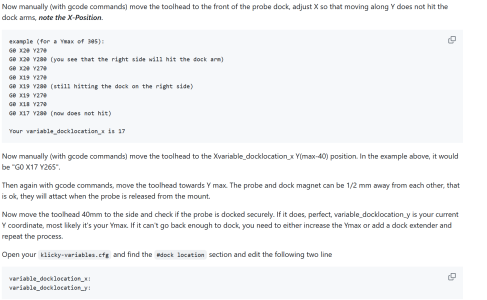

I don't understand this part of the manual, and i believe this is why my variables are wrong. Perhaps someone can help me explain this bit.



[MrMitnick]

Figured it out! I had to also set the other variables down below.

#Dock move, final toolhead movement to release the probe on the dock
#it's a relative move
Variable_dockmove_x: 50
Variable_dockmove_y: 0
Variable_dockmove_z: 0

#Attach move. final toolhead movement to attach the probe on the mount
#it's a relative move
Variable_attachmove_x: 0
Variable_attachmove_y: 40
Variable_attachmove_z: 0



[JDM]

I have a question. I see you might have had similar issues as I am with the klicky. I have those variables set but I still have the issue of the klicky docking but it does not release.



[igiannakas]

Figured it out! I had to also set the other variables down below.

#Dock move, final toolhead movement to release the probe on the dock
#it's a relative move
Variable_dockmove_x: 50
Variable_dockmove_y: 0
Variable_dockmove_z: 0

#Attach move. final toolhead movement to attach the probe on the mount
#it's a relative move
Variable_attachmove_x: 0
Variable_attachmove_y: 40
Variable_attachmove_z: 0

Thank you so much for this! Was having the same issue and it was not clear what to do !!
