I'm making a custom harness for the Mellow Fly SB2040, and need a source for the crimp terminals for just the CANbus data lines.
The connector used for the power and data lines is an Amass XT30(2+2). I had ordered a set of 5 connectors from AliExpress, but due to bad crimpers (I have some PA-09s on the way now) burned through all of the pins.
Since I've got 4 spare sets of the connector housings for the XT30(2+2), I'd like to just get the pins. But I can't find them anywhere.

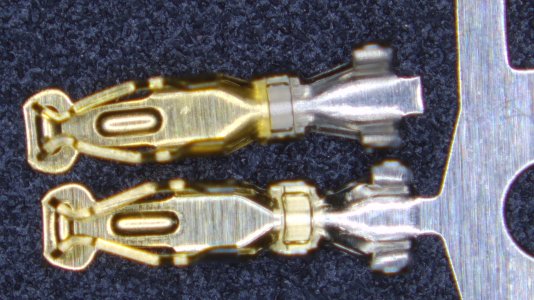

Dimensions of the male contact pins are 0.60 mm square, and they are spaced 2.00 mm. That's the dimensions of a JST PH, but this is most definitely NOT a JST PH. It looks like a shrunken Dupont style terminal, which I can find referenced only in a few places.

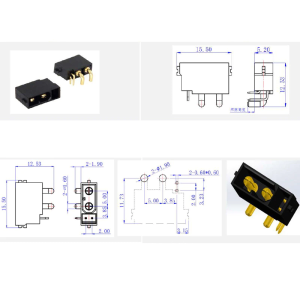

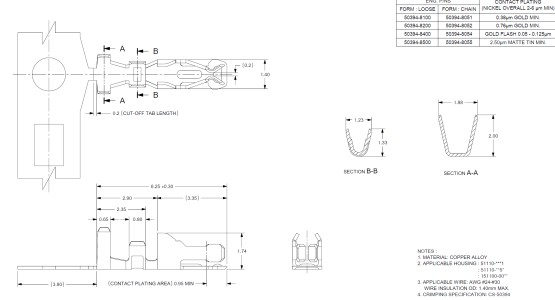

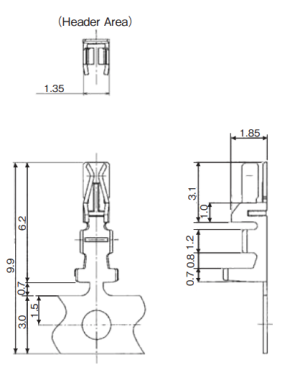

Here's some mechanical drawings lifted from the AliExpress listing for the XT30(2+2):
![Hcbaf34d7871c420ca07bb667928e01d23.png Hcbaf34d7871c420ca07bb667928e01d23.png](https://forum.vorondesign.com/data/attachments/1/1522-98ca7f56fe22931e54ea62bb4b8f1d24.jpg)

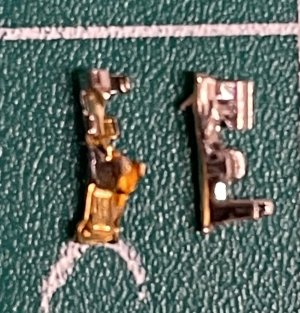

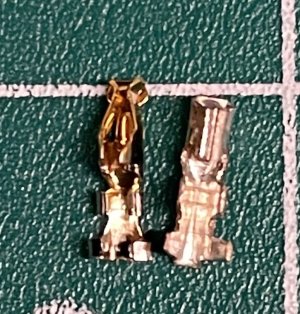

In the below images (sorry for the potato quality, these suckers are tiny), the XT30(2+2) mini female is on the left, and a JST PH female is on the right.
![IMG_4300.jpg IMG_4300.jpg](https://forum.vorondesign.com/data/attachments/1/1520-27d74a30701d7038ccac2517d714832b.jpg)
![IMG_4301.jpg IMG_4301.jpg](https://forum.vorondesign.com/data/attachments/1/1521-bc1bfbebc8ff8703f956aab7bd621839.jpg)
Courtesy of Boxxy, here's a listing for something that looks similar, but the vendor is out, and I'm not in Europe. See the BLMT-CT section at the bottom.
![BLMT-CT.jpeg BLMT-CT.jpeg](https://forum.vorondesign.com/data/attachments/1/1523-d61c31cfe793a6e6e5af7928f440064b.jpg)
If anyone has a source for these pins, I'd appreciate it.
