X beams, and Rails weights

Hey everyone, i figured i'd add this info for people to use for I suppose data purposes
Had some parts laying around and figured some people could use it to help calculate their weight, or possible future upgrade weight

Initially the parts I'm adding here are for my build 2.4 and trident which are 300mm, so 350mm rails 380 x-beams

Will be adding XY Joints, and other items as I get the chance, and if anyone has anything to add just upload a pic and info ie.

Rail Brand, Size and Weight
or
X-Beam, Brand, length, with or without hardware and weight
or
XY Joints Brand and materials
=========================================================================================

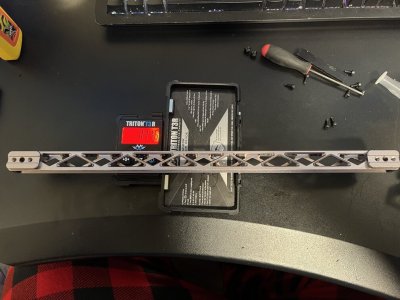

X-Beams

380mm Misumi 1515
126.49g

380mm Mellow CF Tube w/o hardware 40.65g

380mmSpinsall4 Funssor X-Beam 84.46g

380mm DoubleT's AluminumX w/ m5 t nuts and printed parts 131.51g

380mm ChaoticLab X-Beam tube w/ Alu Hardware 80.91g

380mm Common Anomaly Lightweight X Beam with Titanium Backer and backer hardware 169.40g

==========================================================================================

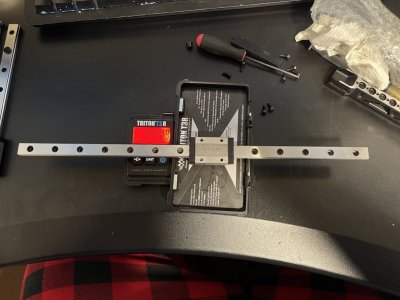

Rails

350mm Fabreeko Honeybadger MGN12H
275.09g

350mm China HIWIN MGN12H 284.39g

350mm Fysetc Lightweight MGN12H 221.31g

350mm Fabreeko Honeybadger MGN9H 155.33g

350mm China HIWIN MGN9H 159.64g

==========================================================================================
Images


Attachments

  • IMG_3210.jpg
    140.5 KB · Views: 21
  • IMG_3212.jpg
    141.7 KB · Views: 18
  • IMG_3213.jpg
    147.2 KB · Views: 21
  • IMG_3222.jpg
    181 KB · Views: 24
  • IMG_3221.jpg
    139.1 KB · Views: 23
  • IMG_3220.jpg
    144.3 KB · Views: 14
  • IMG_3214.jpg
    141.1 KB · Views: 12
max 10 images per post, so heres the rest


Attachments

  • IMG_3215.jpg
    135.4 KB · Views: 16
  • IMG_3216.jpg
    165.9 KB · Views: 18
  • IMG_3217.jpg
    146.9 KB · Views: 16
  • IMG_3218.jpg
    137.4 KB · Views: 19
  • IMG_3219.jpg
    145.6 KB · Views: 23
Have you tried DoubleT's AluminumX, I bought the mellow cf one and wasnt very impressed. I am thinking of getting DoubleT's Aluminum.
